Applications overview

Applications

  • smimekeys-client - S/MIME keys client service (port 8081)
  • policy - Policy service (port 8082)
  • irisagent - IRIS Agent service (port 8083, WireGuard: 19818/udp, 19818/tcp)
  • mxengine - MX Engine service (port 8084, SMTP: 1587)
  • stalwart - Stalwart MTA mail server (port 25, 10026)
  • clamav - ClamAV antivirus; scans mail at Stalwart's SMTP DATA stage via the milter protocol (port 7357)
  • mtaconf - MTA configuration daemon (API: 8080)
  • dashboard - Web-based admin UI for onboarding, domain management, and monitoring (port 443)
  • policy-sync - Syncs OPA/Rego policies from Git repository to database (runs continuously)

Infrastructure

  • PostgreSQL - Database (port 5432)
  • Vault - Secrets management (internal port 8200, not published to the host)
  • MinIO - S3-compatible storage (API on host port 9000; console not published to the host)
  • Keycloak - Identity provider and OIDC authentication (port 8180)
  • APISIX - API gateway with OIDC bearer auth (port 9080)
  • NATS - Inter-service messaging (triggers Stalwart reloads from dashboard)

Init Containers

  • vault-init - Initializes and unseals Vault on first run
  • seaweedfs-init - Creates the S3 bucket
  • apisix-init - Generates APISIX config from template
  • keycloak-init - Sets initial admin password

Monitoring

  • node-exporter - Host metrics for Prometheus (port 9100)
  • version-collector - Collects app versions from /liveness endpoints for node-exporter
  • Alloy - Log collector for Loki (ships app logs)
  • Dozzle - Real-time container log viewer (port 8190, HTTPS, behind Keycloak SSO via oauth2-proxy; optional, enabled with DOZZLE_ENABLED)
  • oauth2-proxy - OIDC relying party that authenticates Dozzle access against Keycloak (starts together with Dozzle)

See Monitoring and Logs for detailed configuration and usage.

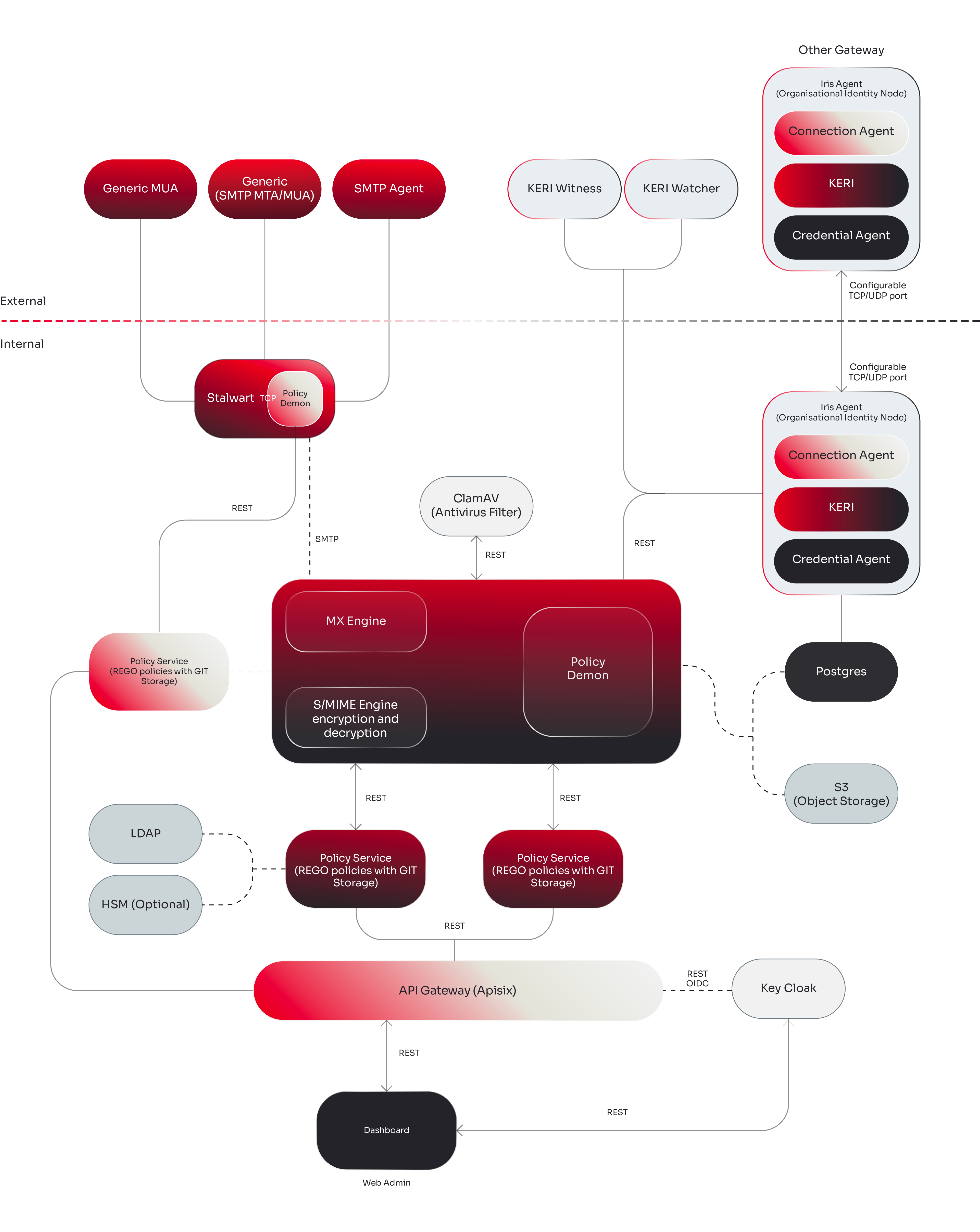

Architecture overview

Architecture

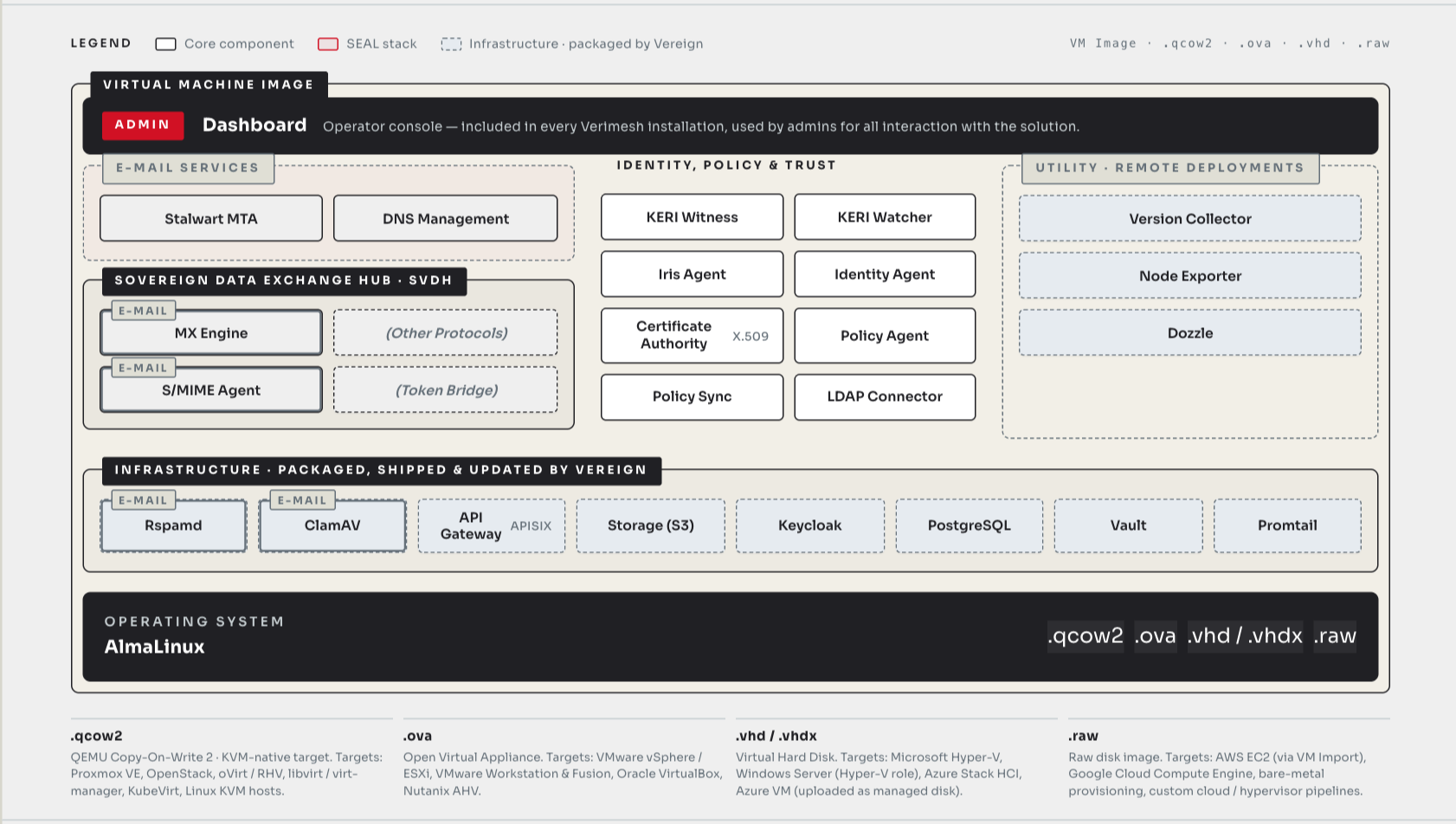

VM Architecture overview

VM Overview
