Stargate mail relay setup¶

Create a stargate relay for a mail domain hosted in Microsoft Office 365¶

For the relay, we need a VM or a server with a real static IP address.

In this example we will use a VM with IP address 128.140.117.200 and hostname mail.vrgnservices.eu to relay mail for domain vrgnservices.eu.

Set up DNS records¶

"A" record, pointing to the IP address:A mail 128.140.117.200
"MX" record with higher priority(lower number) than other existing MX record(s):

This record already exists and sets the mail server to Office 365:MX @ 20 vrgnservices-eu.mail.protection.outlook.com.

This is the new record to be added:MX @ 15 mail.vrgnservices.eu..

Edit the SPF record to add the IP address of the stargate relay server, change from TXT @ "v=spf1 include:spf.protection.outlook.com -all" to TXT @ "v=spf1 ip4:128.140.117.200 include:spf.protection.outlook.com -all"

Verify the records:

# host mail.vrgnservices.eu
mail.vrgnservices.eu has address 128.140.117.200

# host -t mx vrgnservices.eu
vrgnservices.eu mail is handled by 20 vrgnservices-eu.mail.protection.outlook.com.
vrgnservices.eu mail is handled by 15 mail.vrgnservices.eu.

# host -t txt vrgnservices.eu|grep v=spf1
vrgnservices.eu descriptive text "v=spf1 ip4:128.140.117.200 include:spf.protection.outlook.com -all"

Install the stargate docker compose containers¶

Stargate Deployment

Requirements¶

2 CPU cores (minimum)
4 GB RAM (minimum)
20 GB storage (minimum)
Root access: Must be run as root or with sudo
Supported distributions:
- RHEL 8, 9 and 10 compatible distributions such as Alma Linux, Rocky Linux, Centos Stream
- Ubuntu 22 and 24
- Debian 11, 12 and 13
Real IPv4 address
Valid DNS records: Your domain must have:
- MX records pointing to your mail servers
- SPF record defining allowed sending networks

The script will set up the mail domain using the MAIL_DOMAIN environment variable. It installs all components, extracts the necessary mail relay settings from DNS, applies them in the configuration and starts them.

Set up Exchange¶

We need to configure connectors and a transport rule in Exchange to relay all outgoing mail to the postfix relay and allow incoming mail from it.

Navigate to https://admin.exchange.microsoft.com/#/connectors

Outgoing connector¶

Create outgoing mail connector, click"Add":

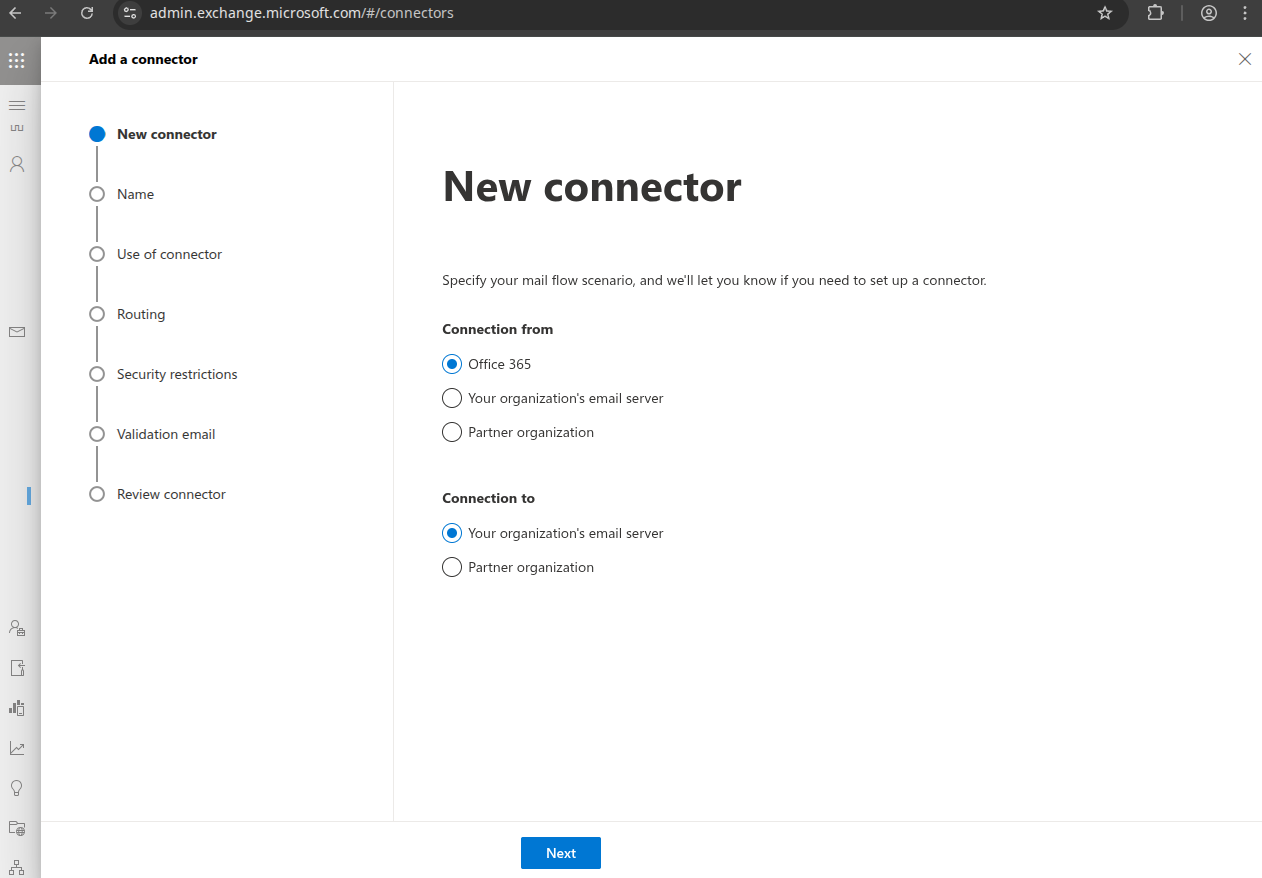

Select "Connection from": "Office 365" "Connection to": "your organization's email server, click "Next".

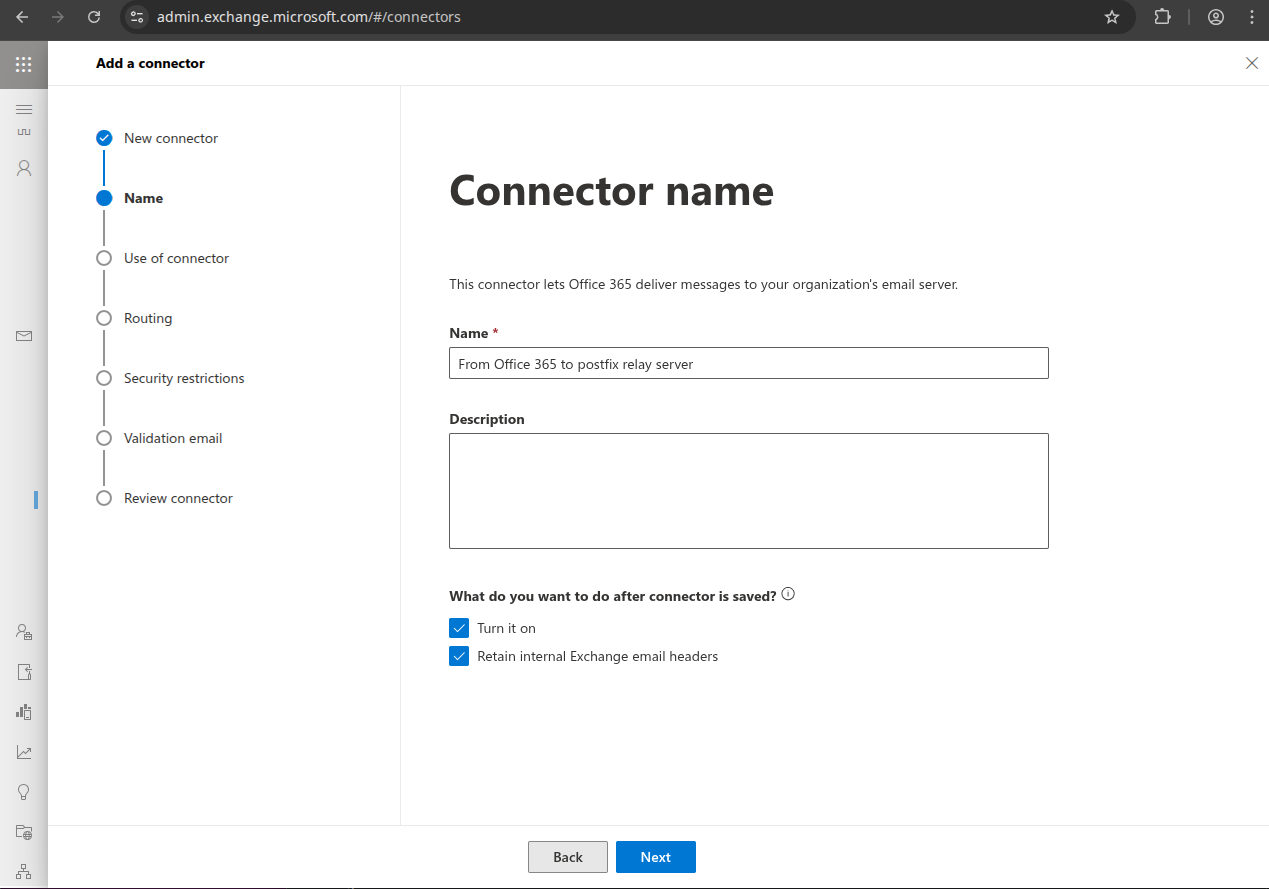

Name it something like "From Office 365 to postfix relay sever" and check "Retain Internal Exchange email headers", click "Next".

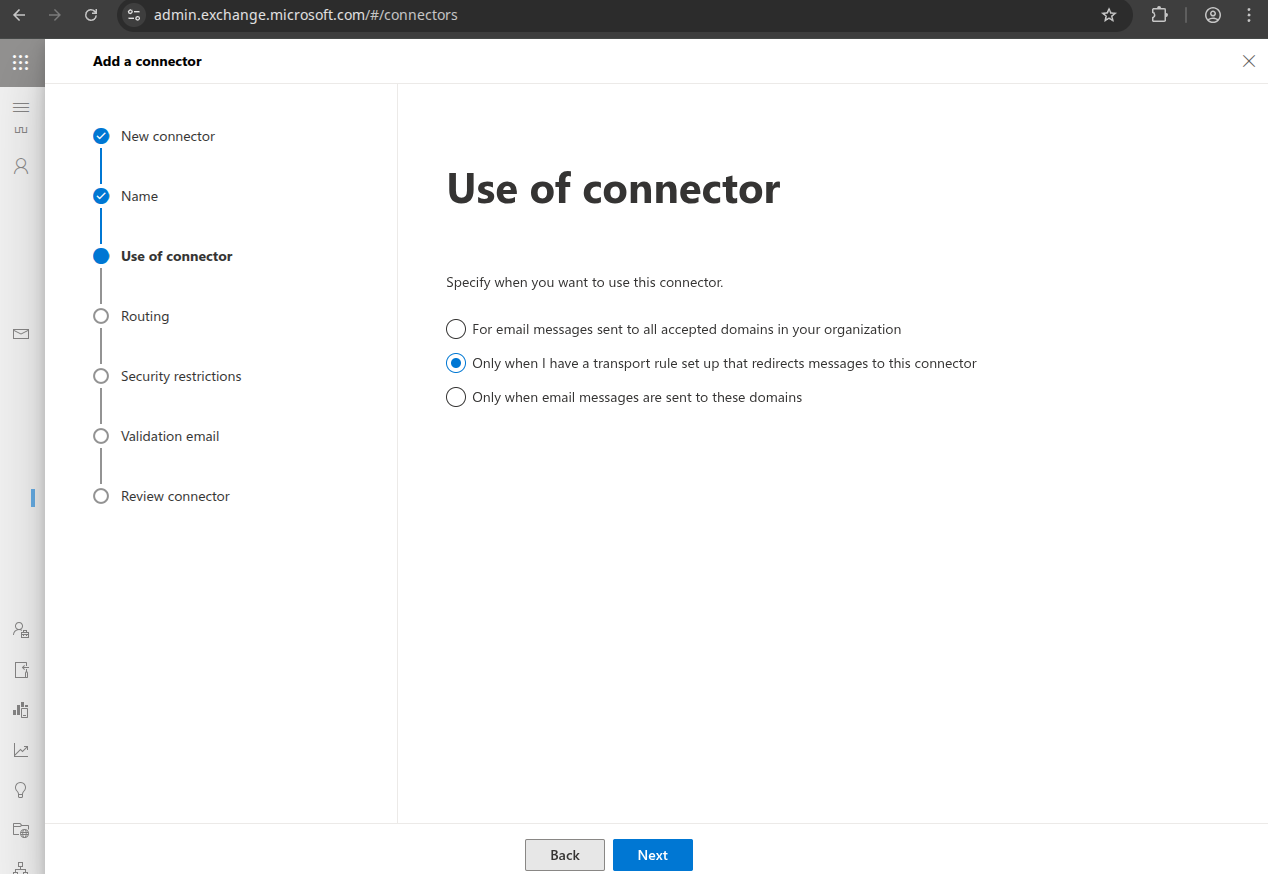

Select "Only when I have a transport rule set up that redirects messages to this connector", click Next,.

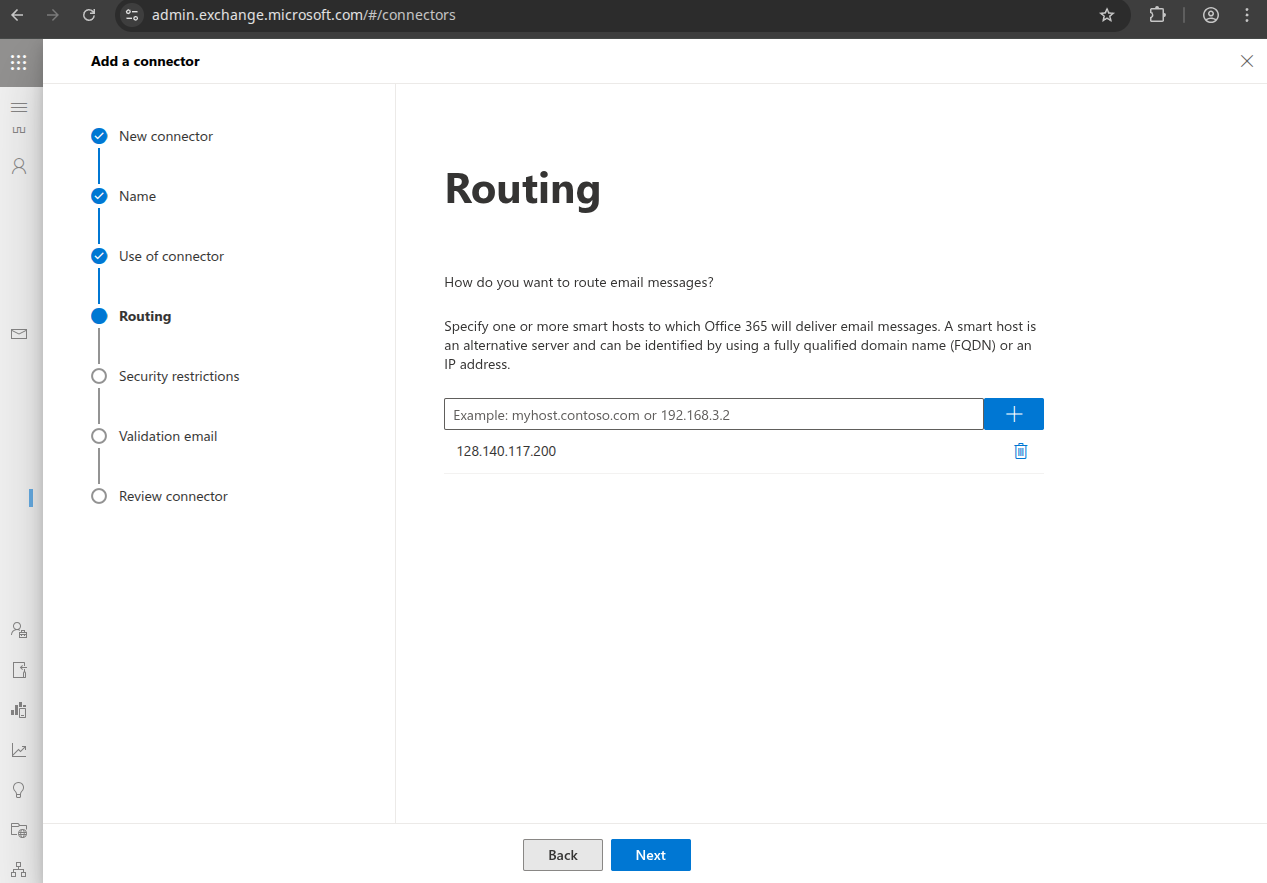

Enter the IP address of the postfix relay server, click "+", click "Next".

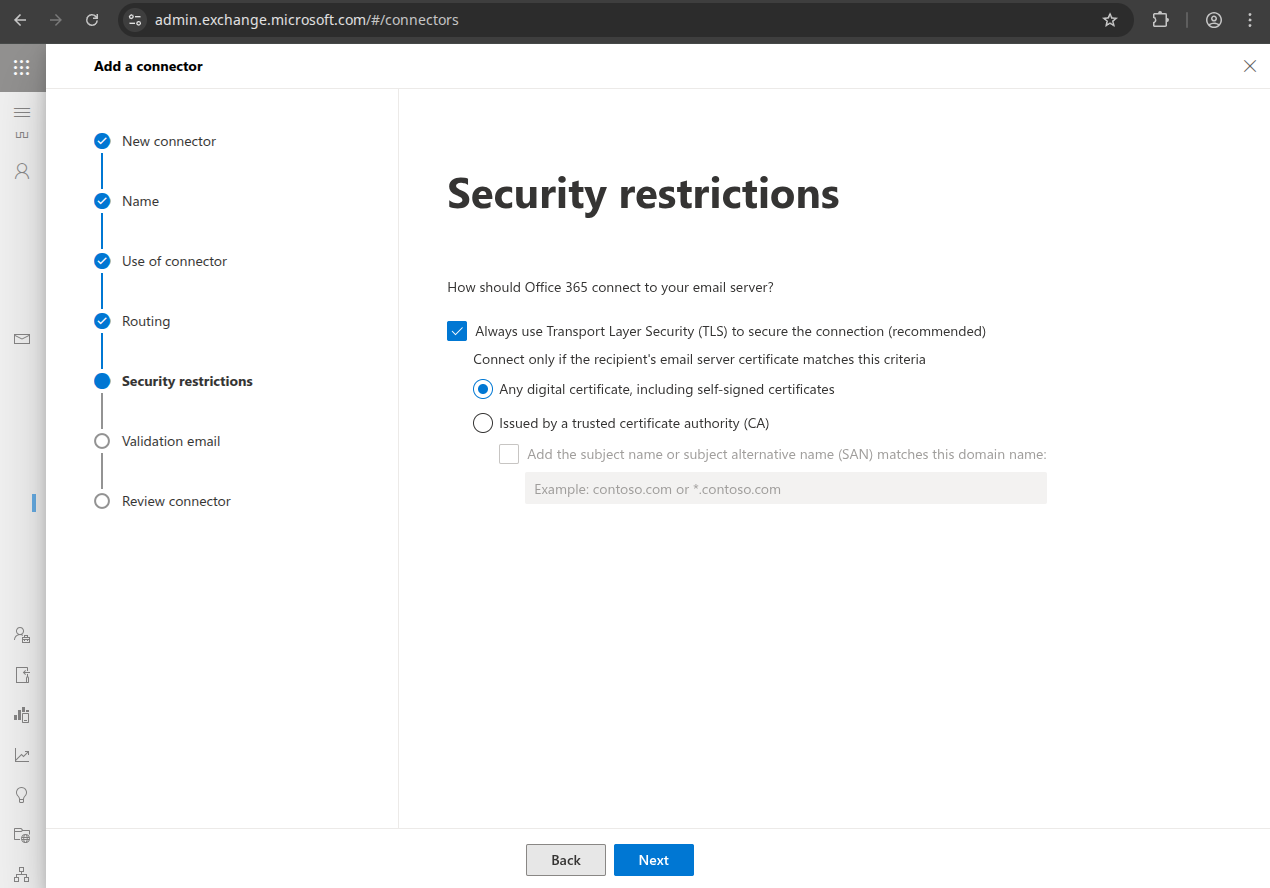

Select "Any digital certificate, including self-signed certificates", click "Next".

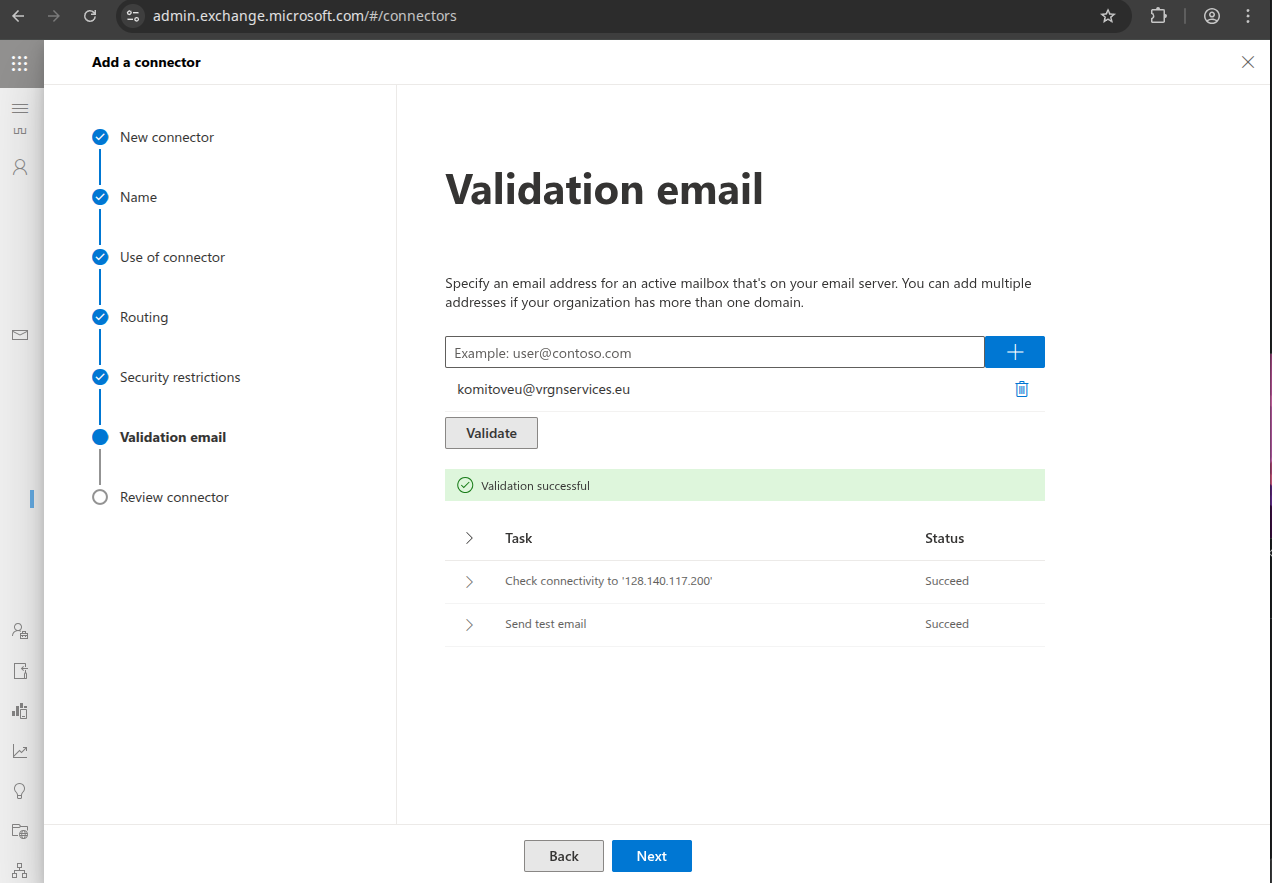

Enter a valid email address for your domain, click "+", click "Validate", click "Next".

Click "Create connector".

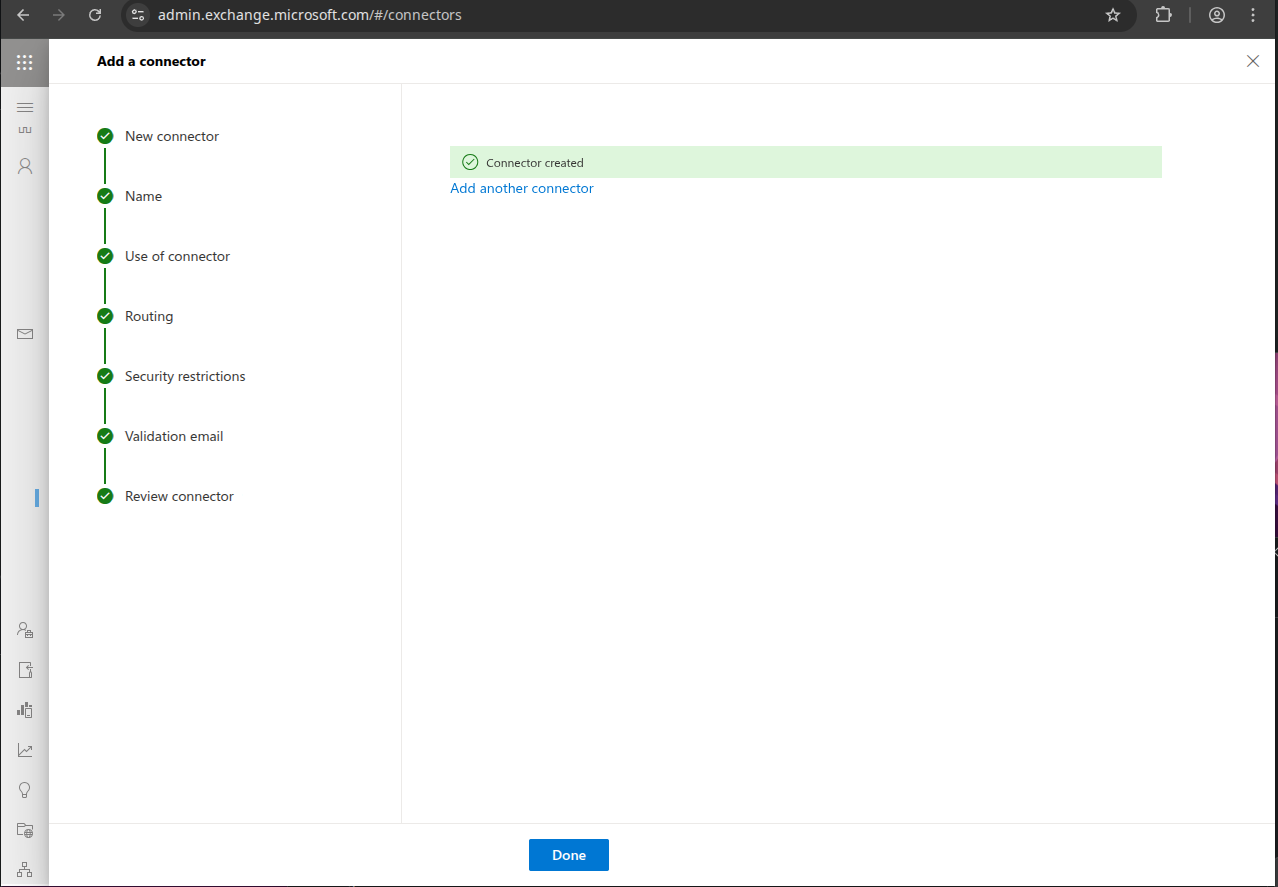

Click "Add another connector".

Incoming connector¶

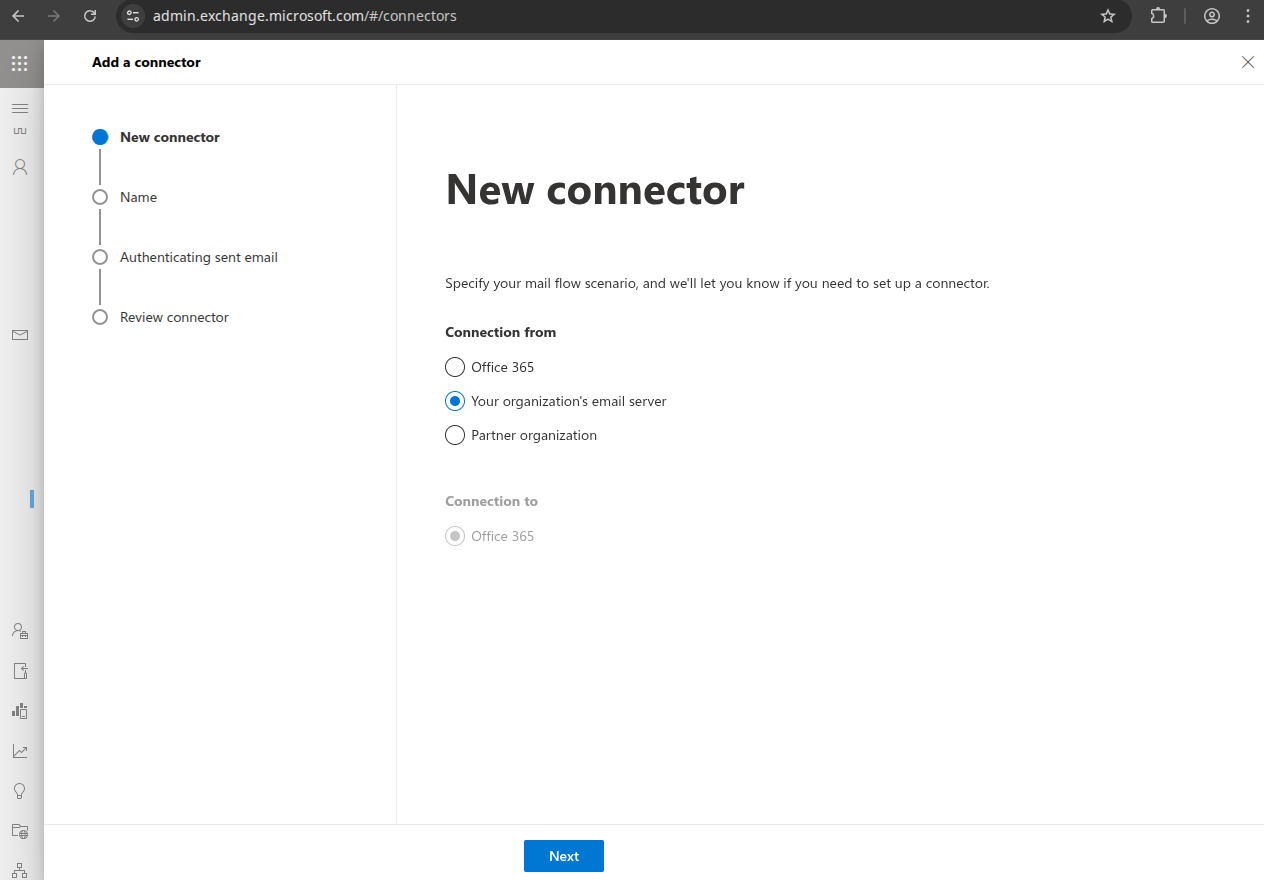

Create incoming mail connector, choose "Connection from": "Your organization's email server", click "Next".

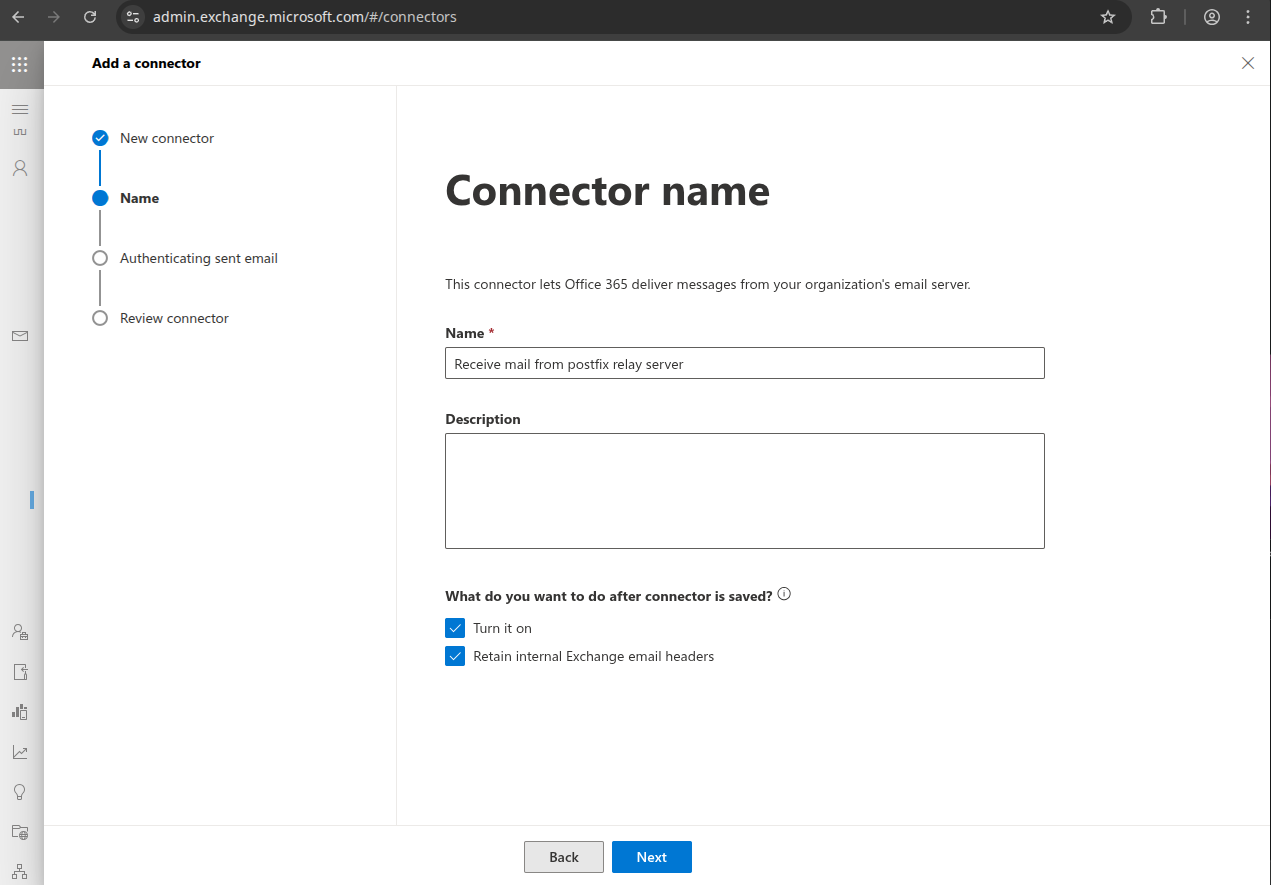

Name it something like "Receive mail from postfix relay server" and check "Retain internal Exchange email headers", click "Next.

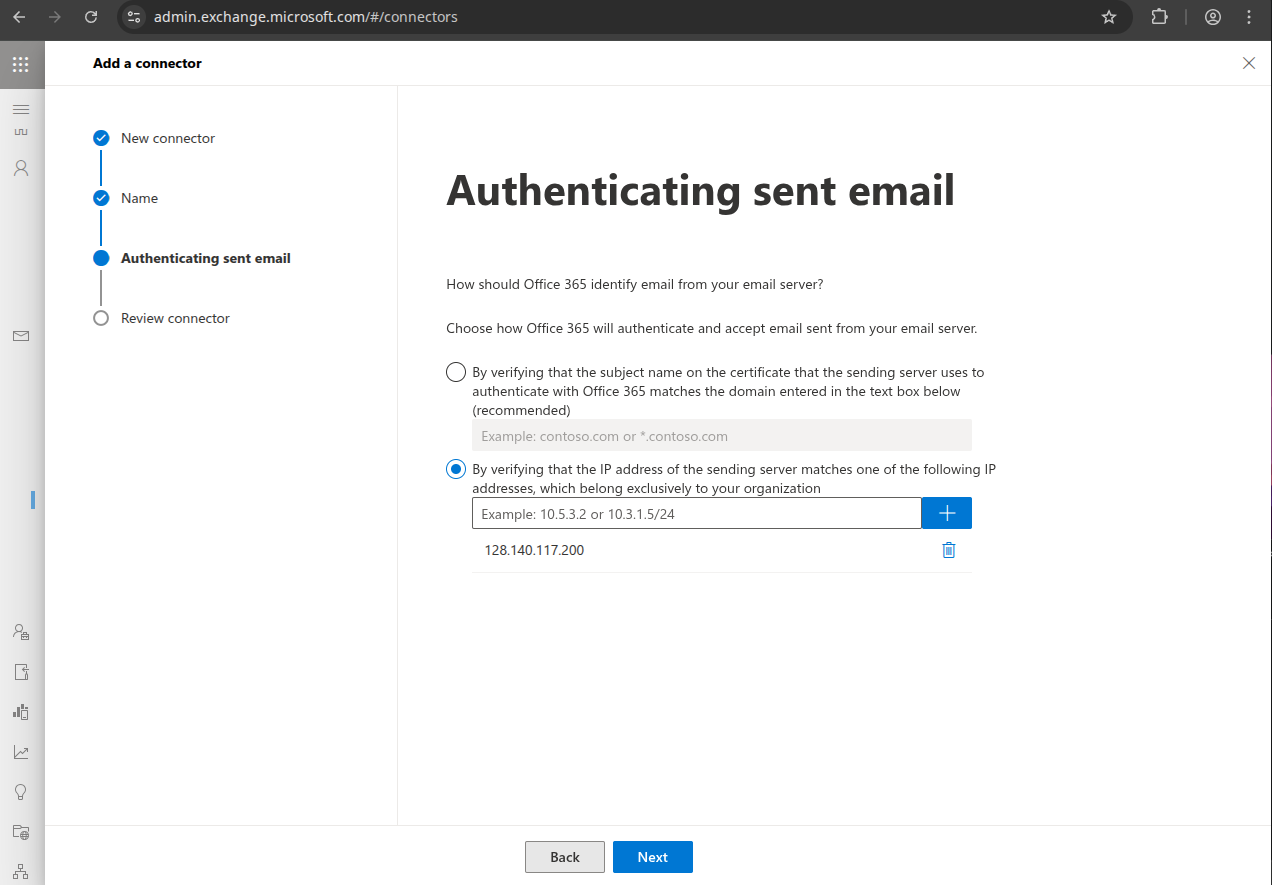

Select "By verifying that the IP address of the sending server matches one of the following IP addresses, type the IP address of postfix, click "+", click "Next".

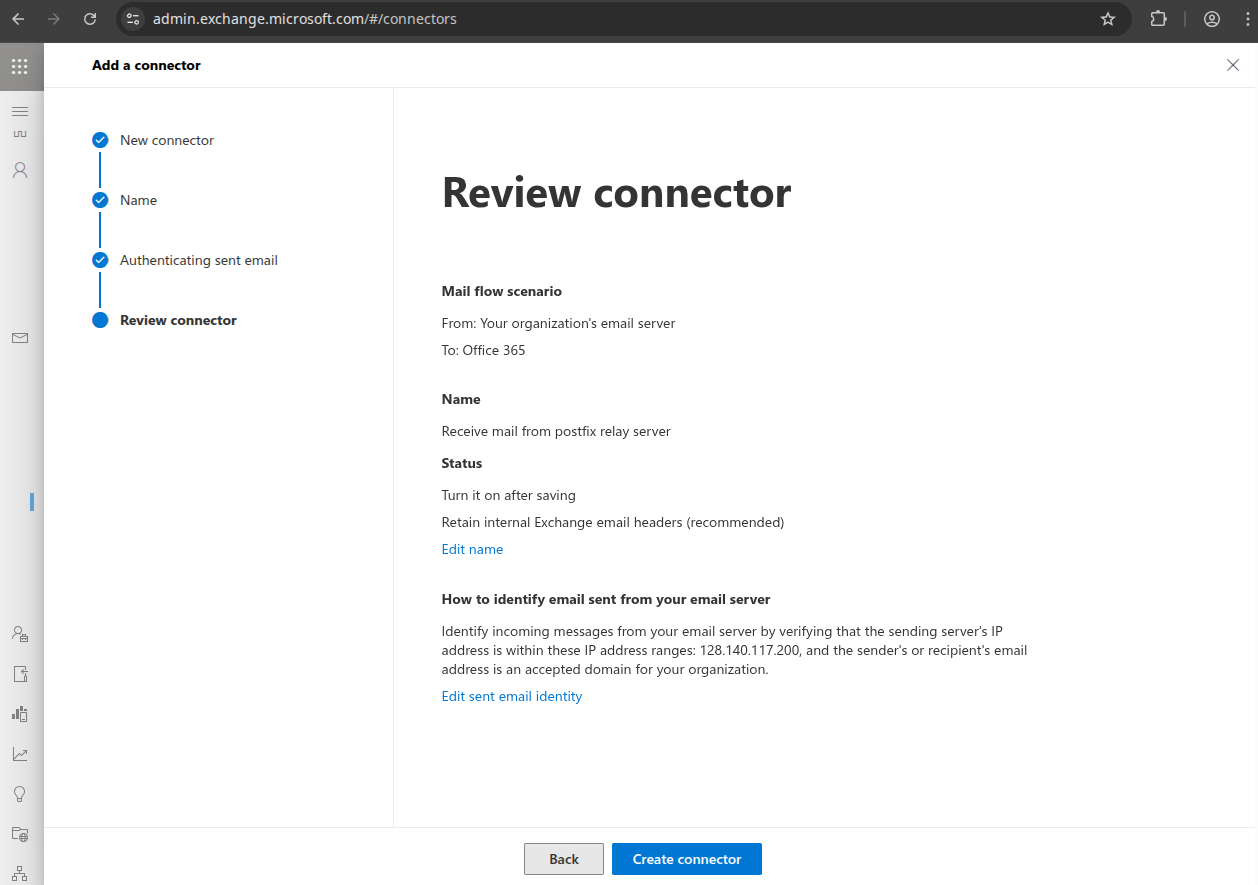

Click "Create connector".

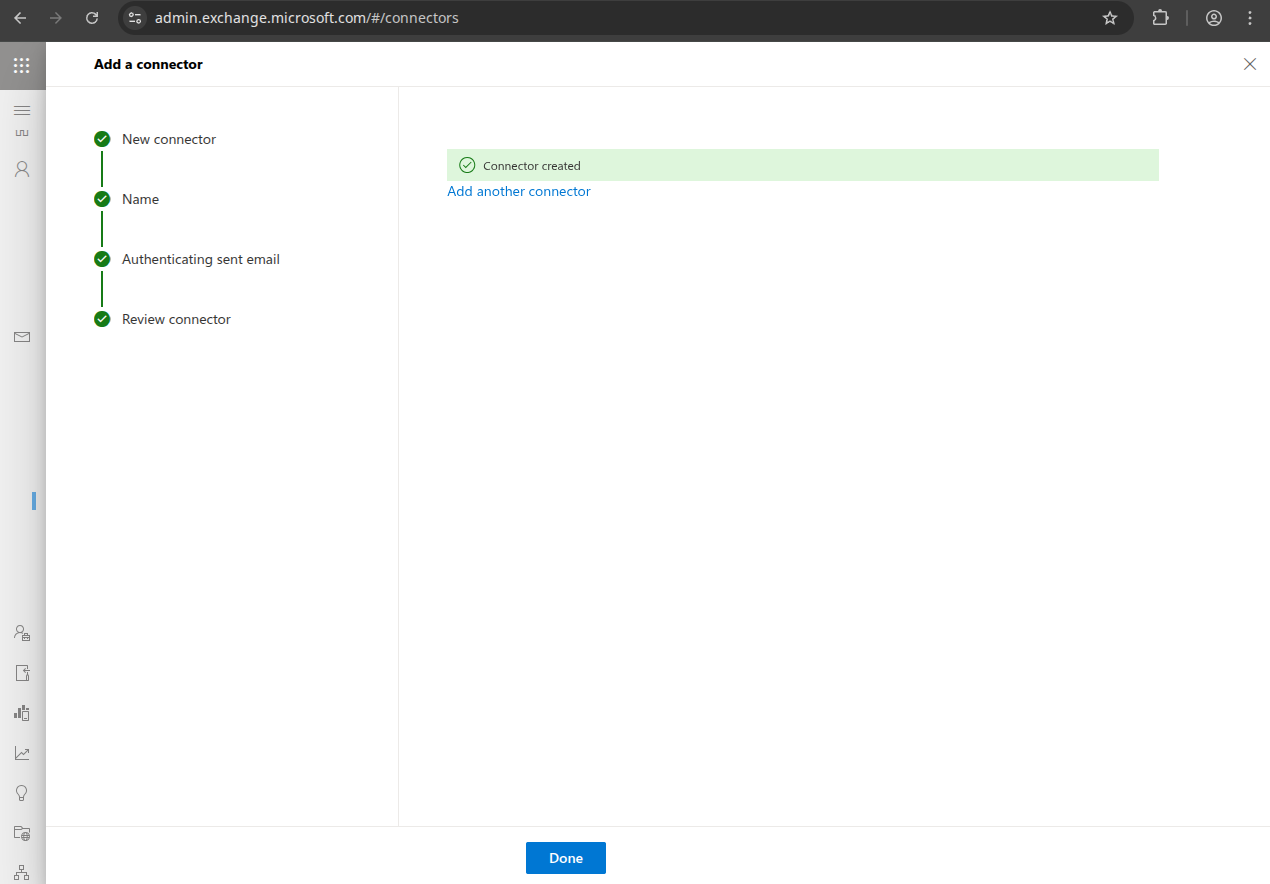

Click "Done".

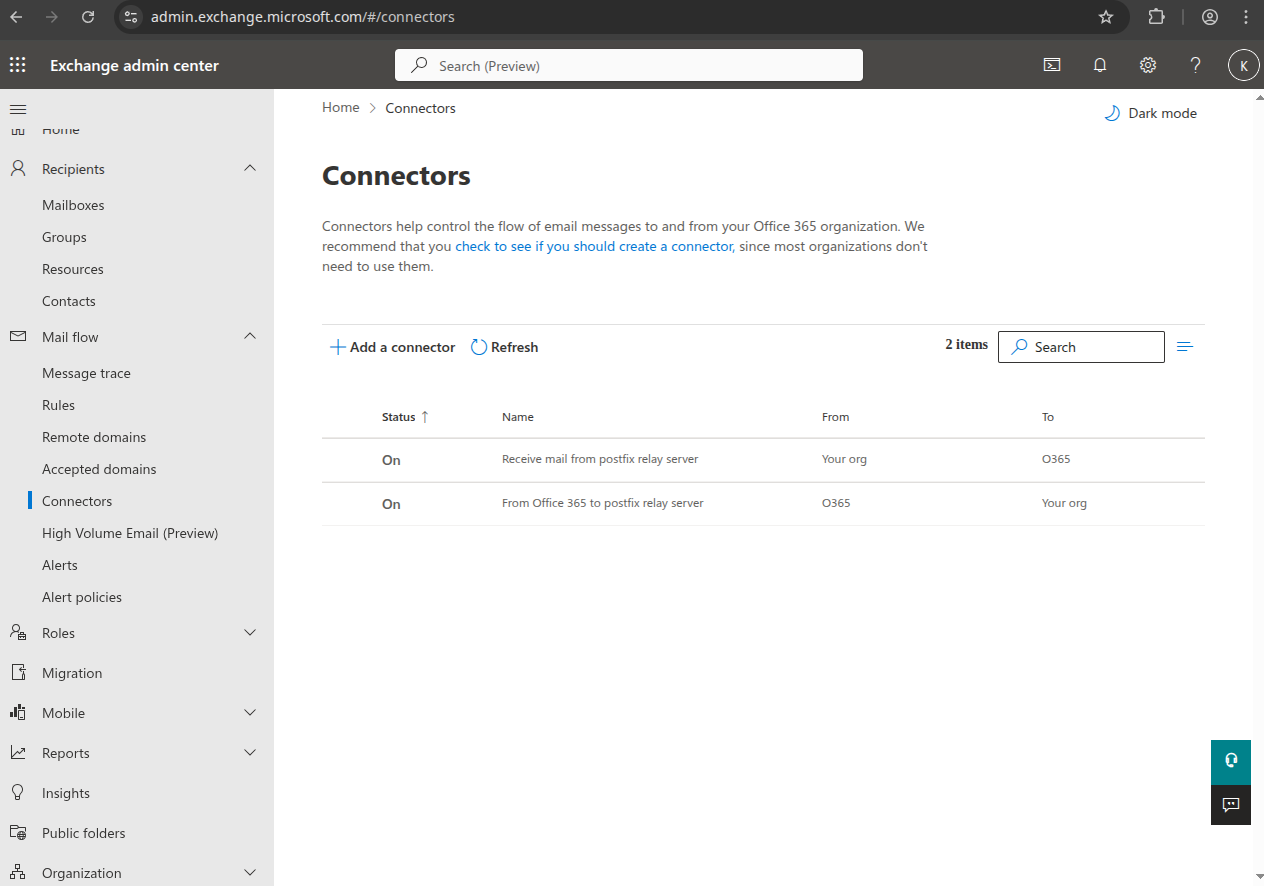

This is how it looks when done:

Transport Rule¶

Create the transport rule, navigate to https://admin.exchange.microsoft.com/#/transportrules

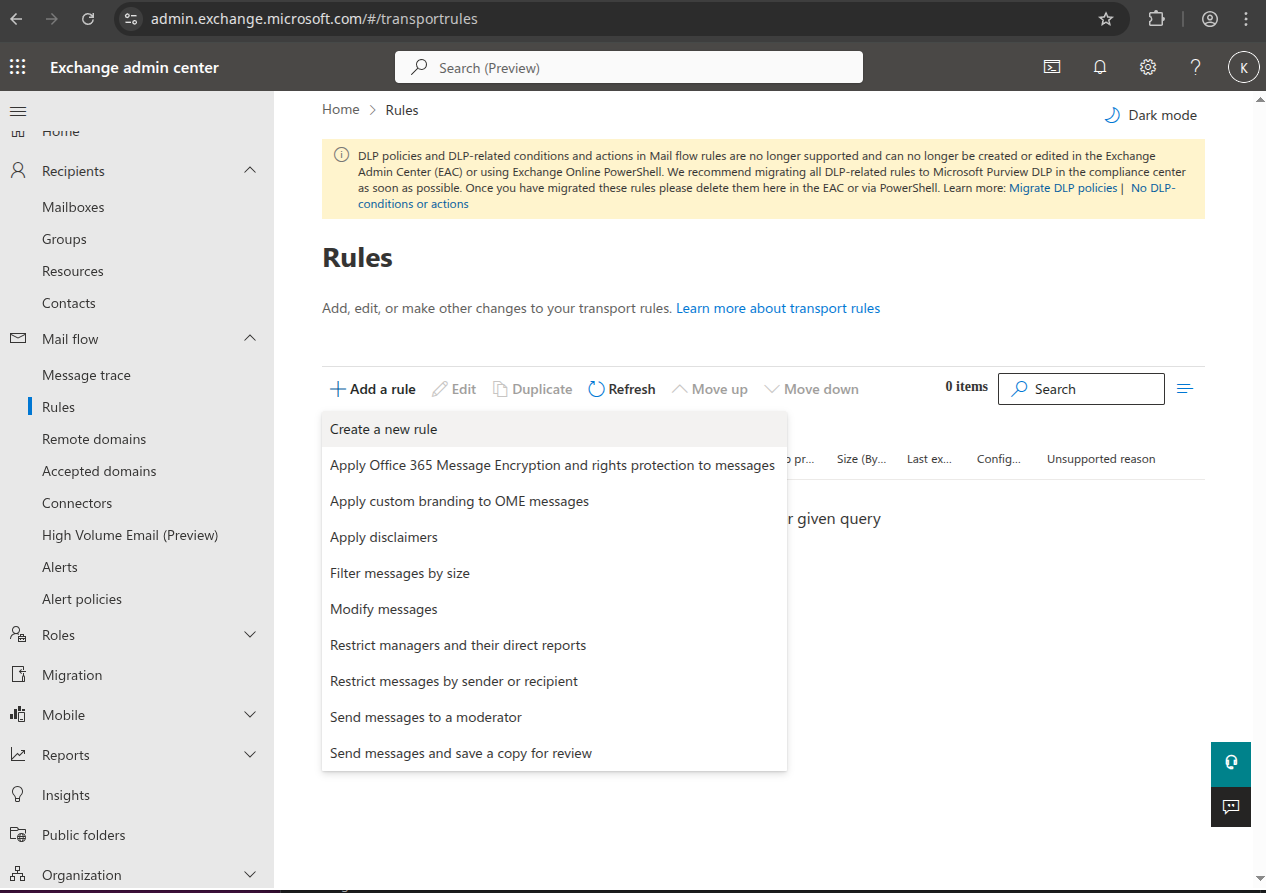

Click "+Add a rule" → "Create a new rule".

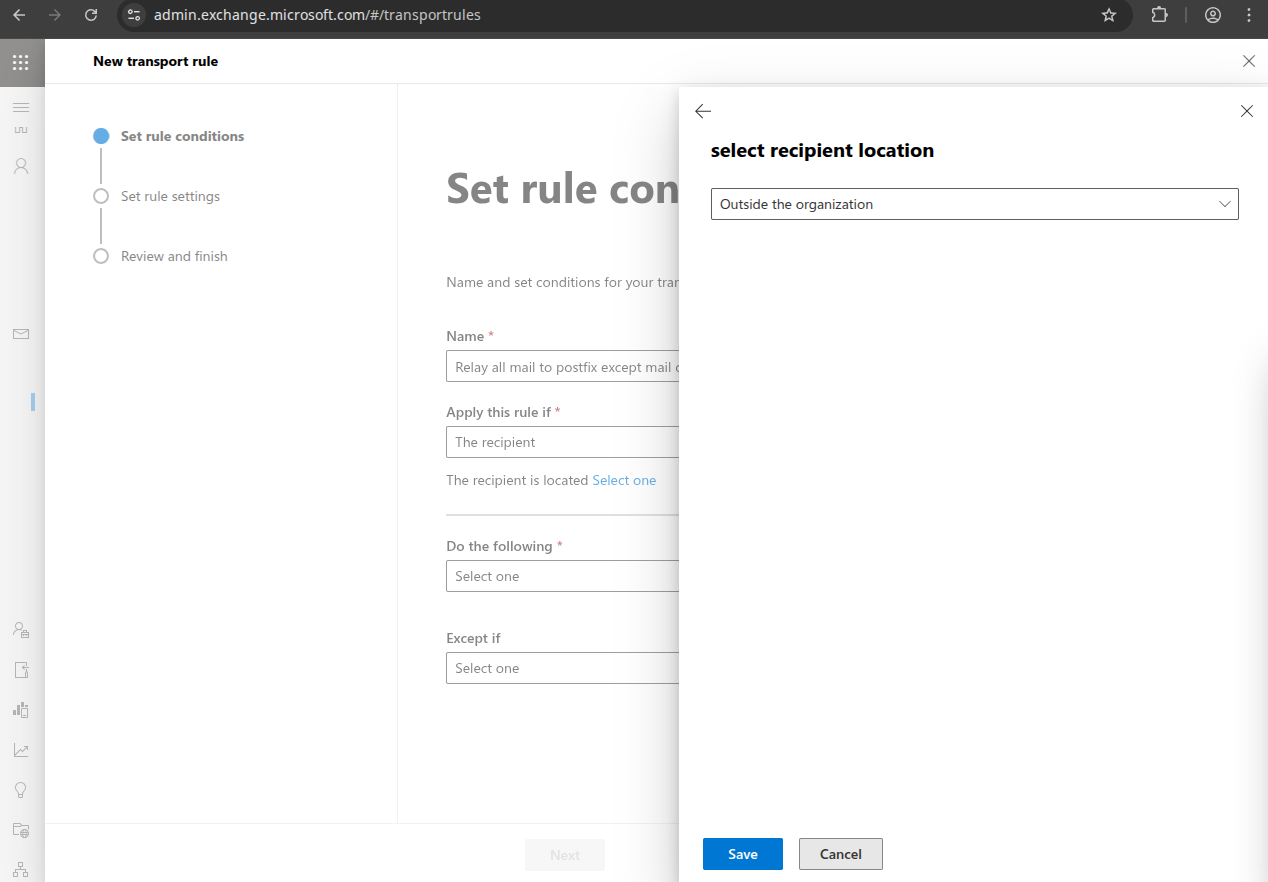

Name it something like "Relay all mail to postfix except mail coming from it", choose "Apply rule if" "The recipient:" "is external/internal" "Outside the organization", click "Save".

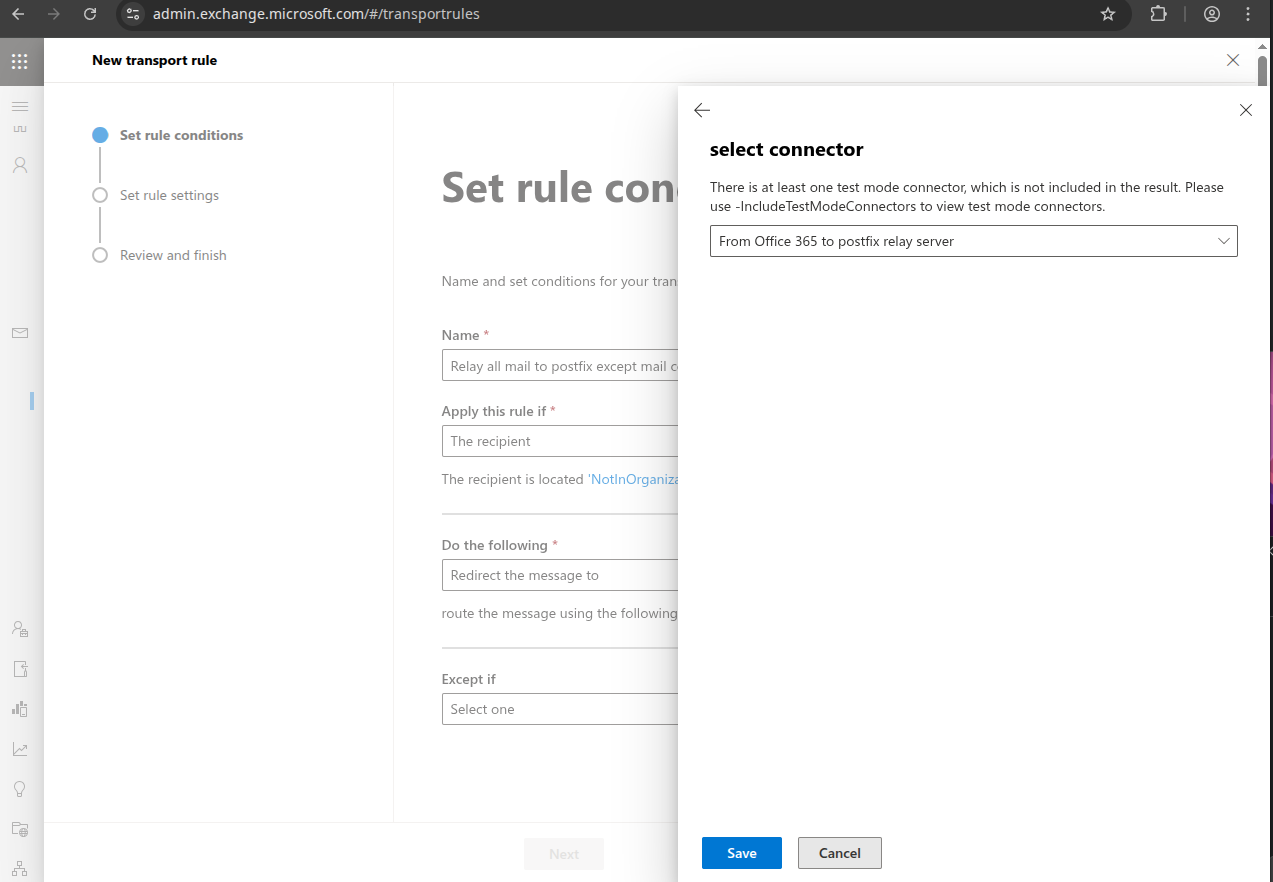

Choose "Do the following" "Redirect message to the following connector" "From Office 365 to postfix relay server", click "Save".

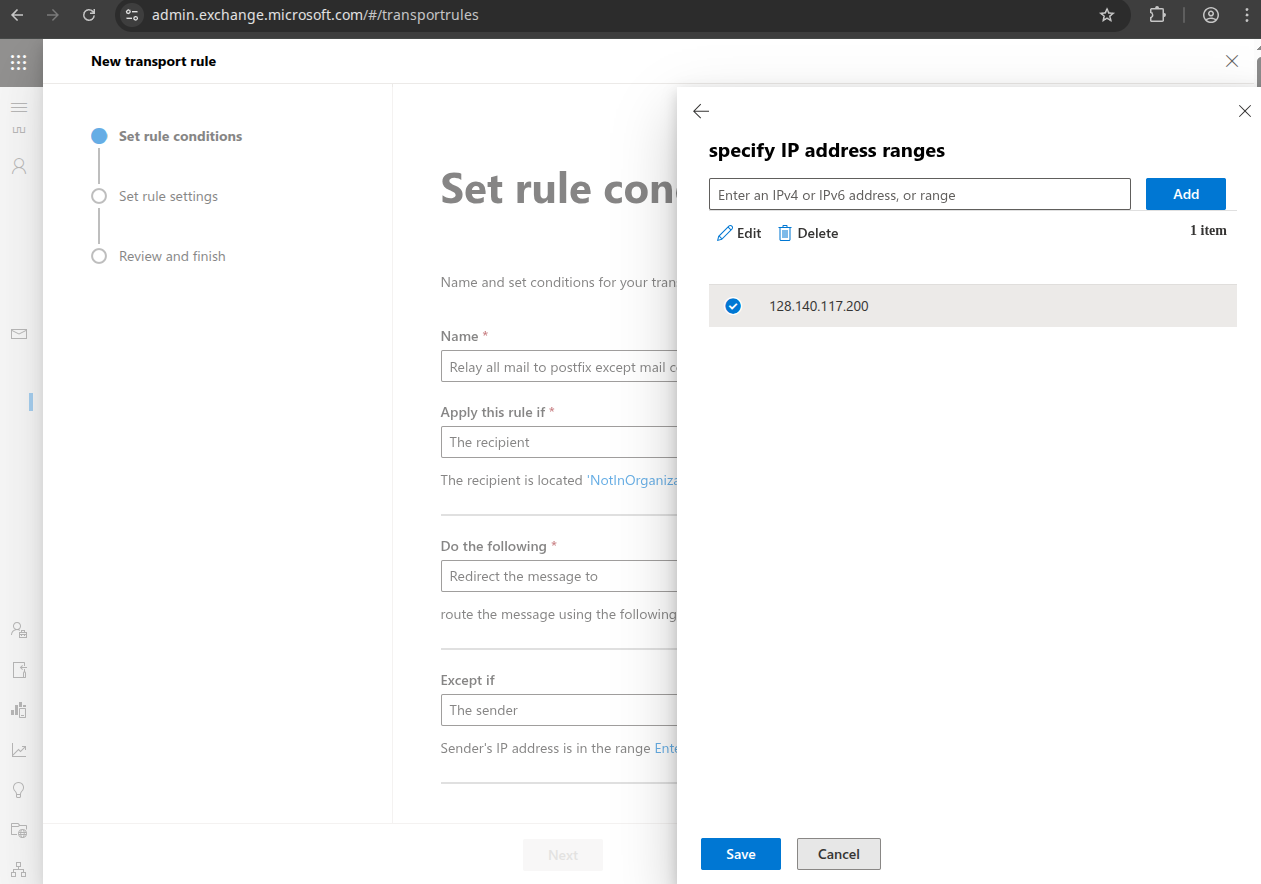

Choose "Except if The sender IP address is in any of these ranges" enter the IP address of the postfix server, click "Add", check the IP address and click "Save".

This is needed to prevent mail loops, as this rule also applies to other domains hosted in Office 365.

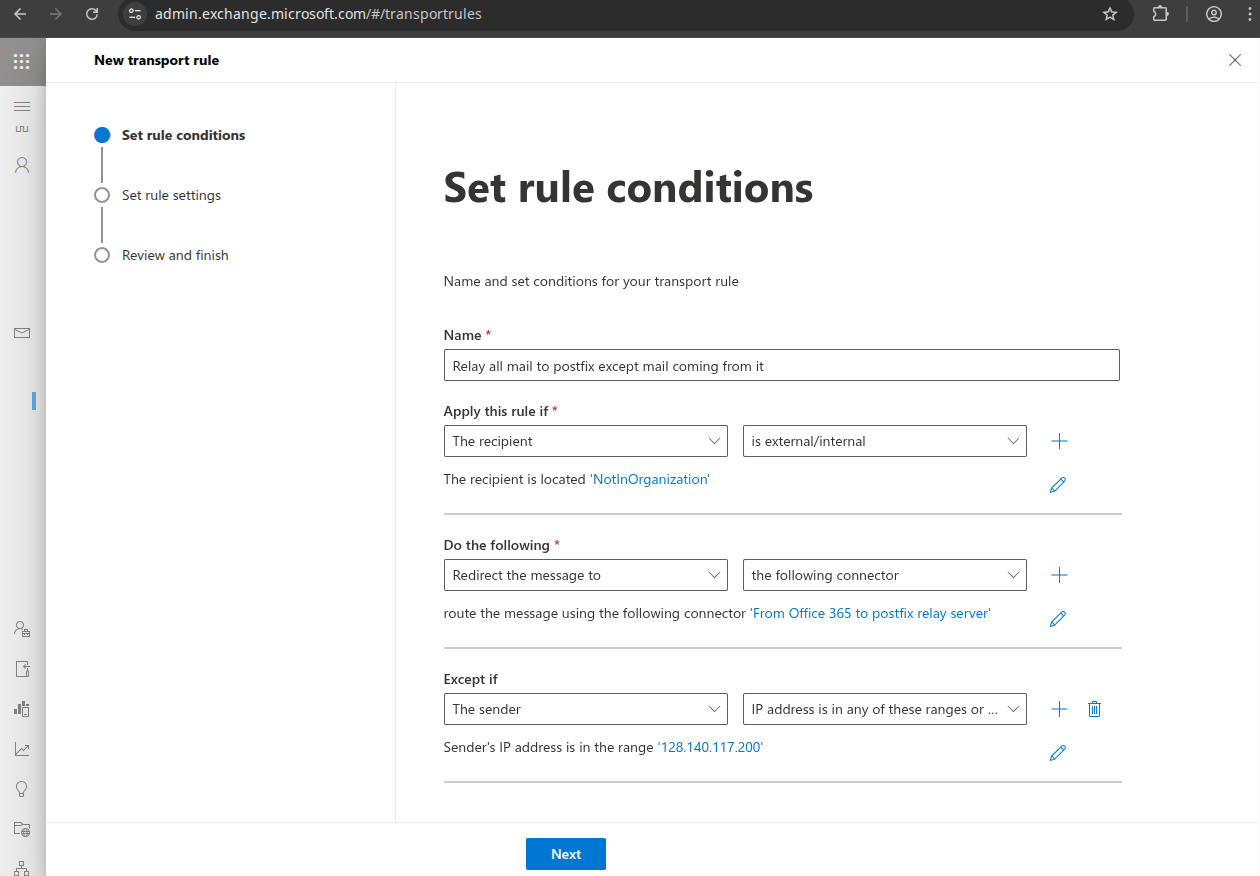

Now it should look like this, click "Next":

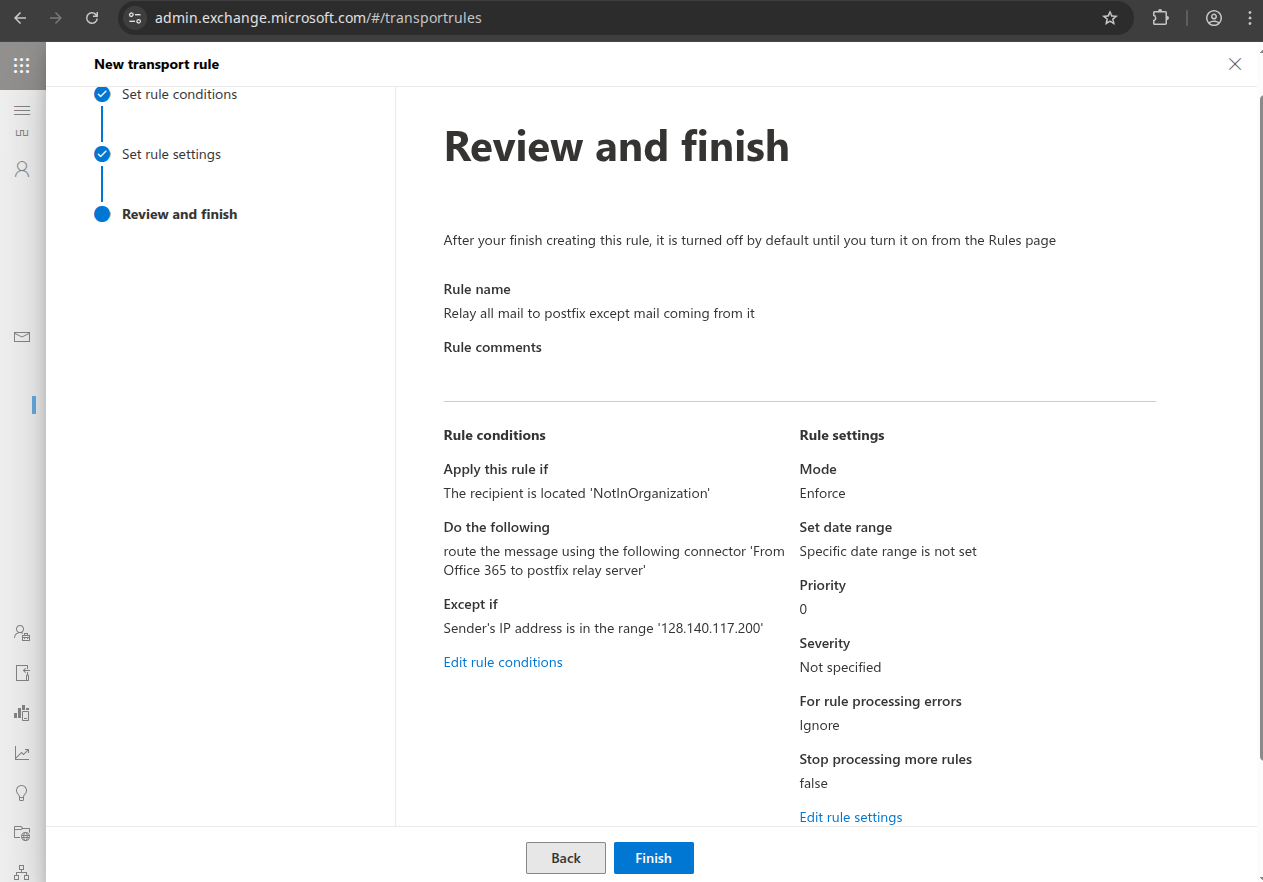

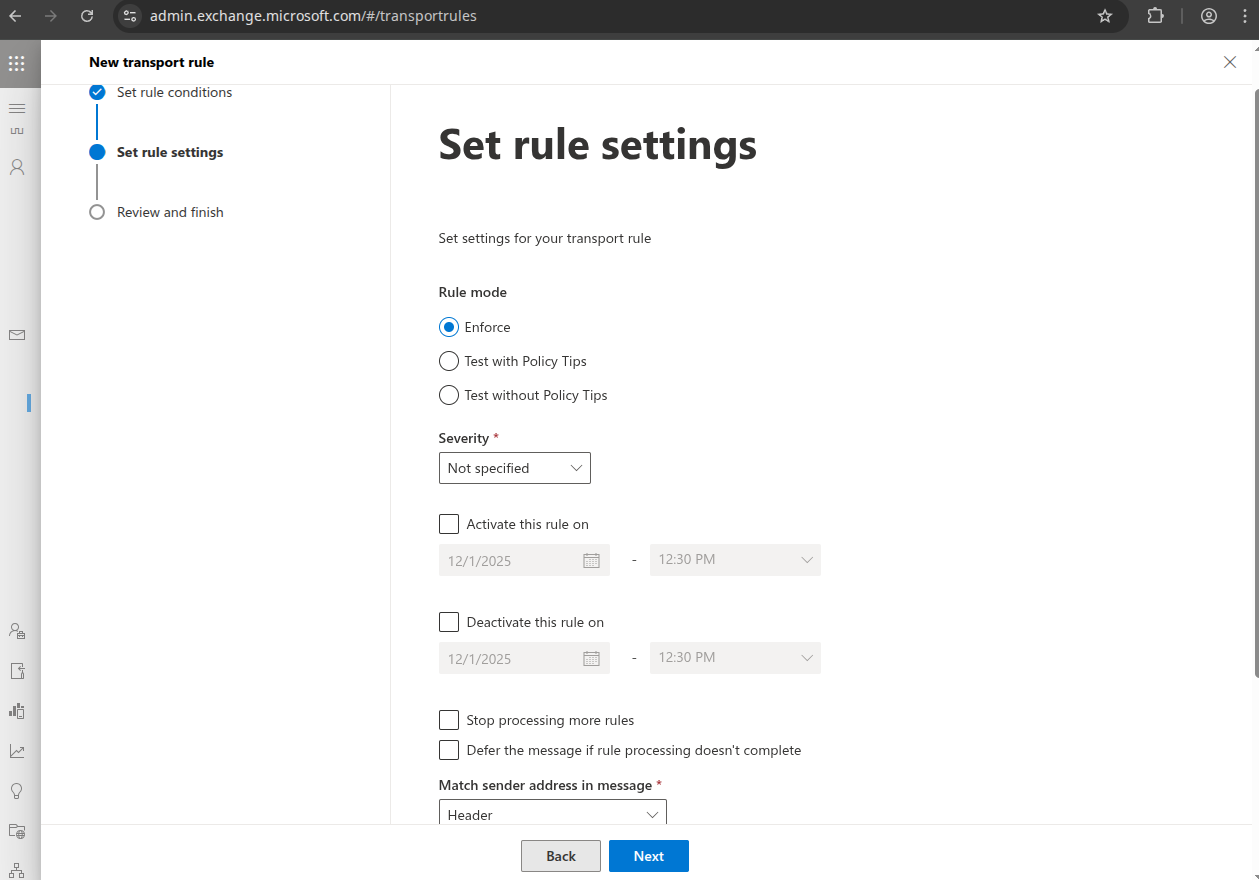

Click "Next".

Click "Finish".

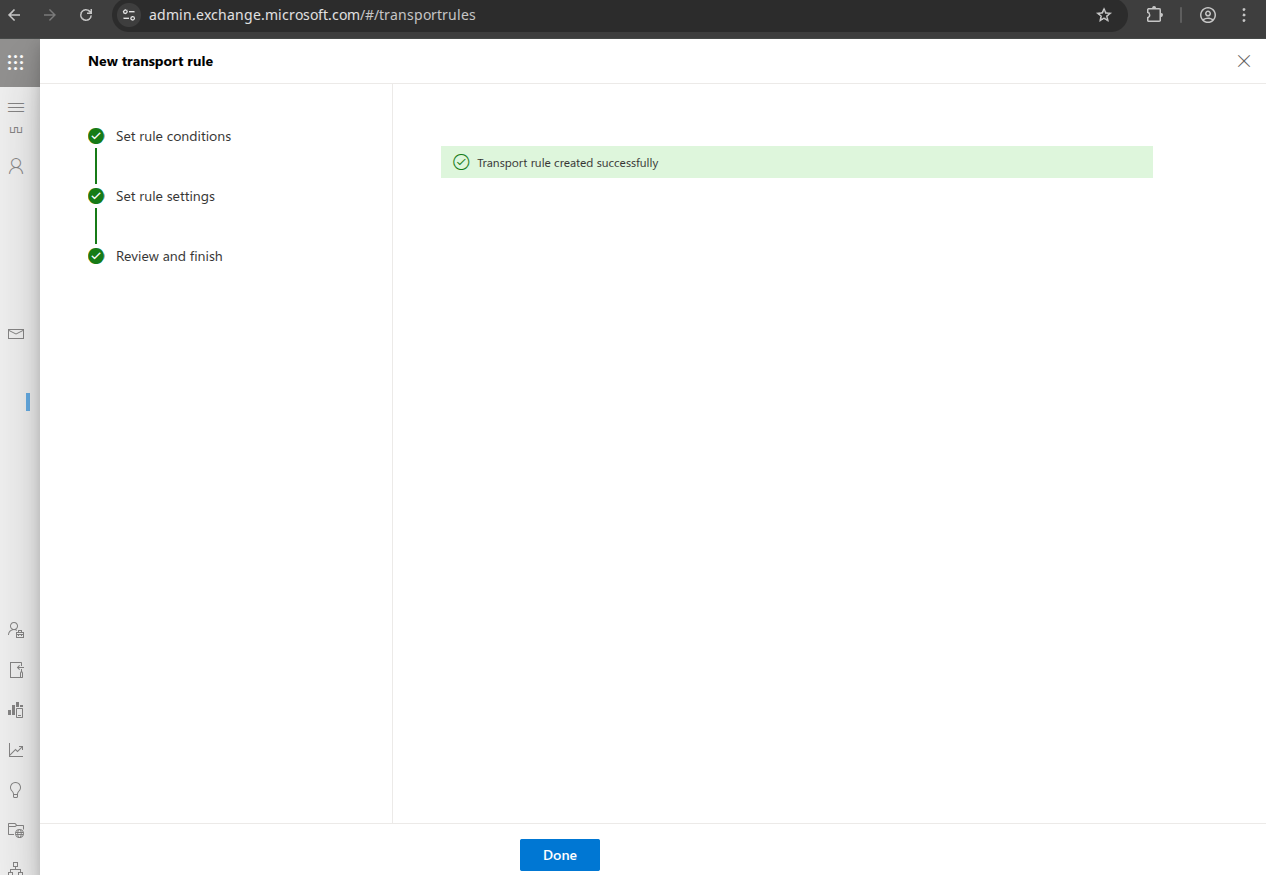

Click "Done".

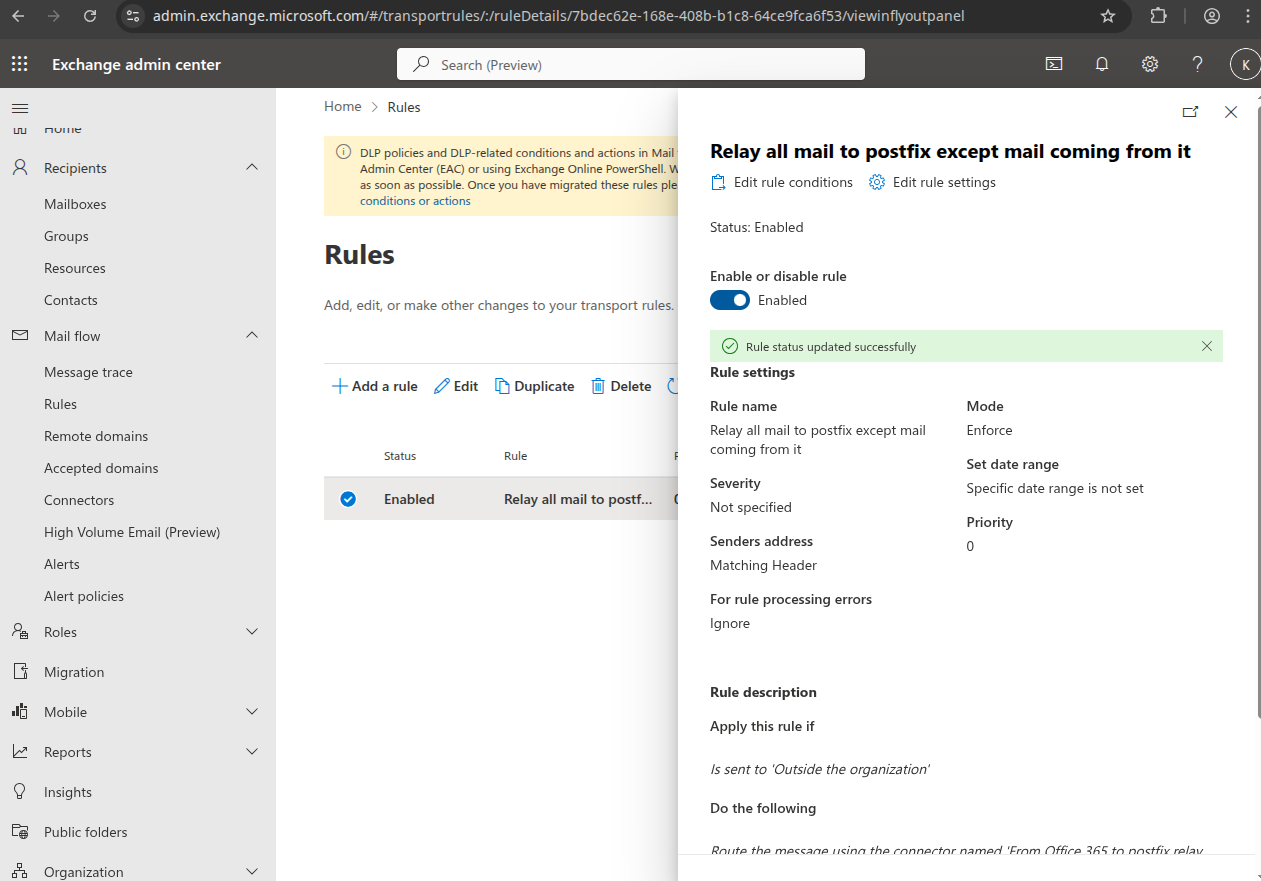

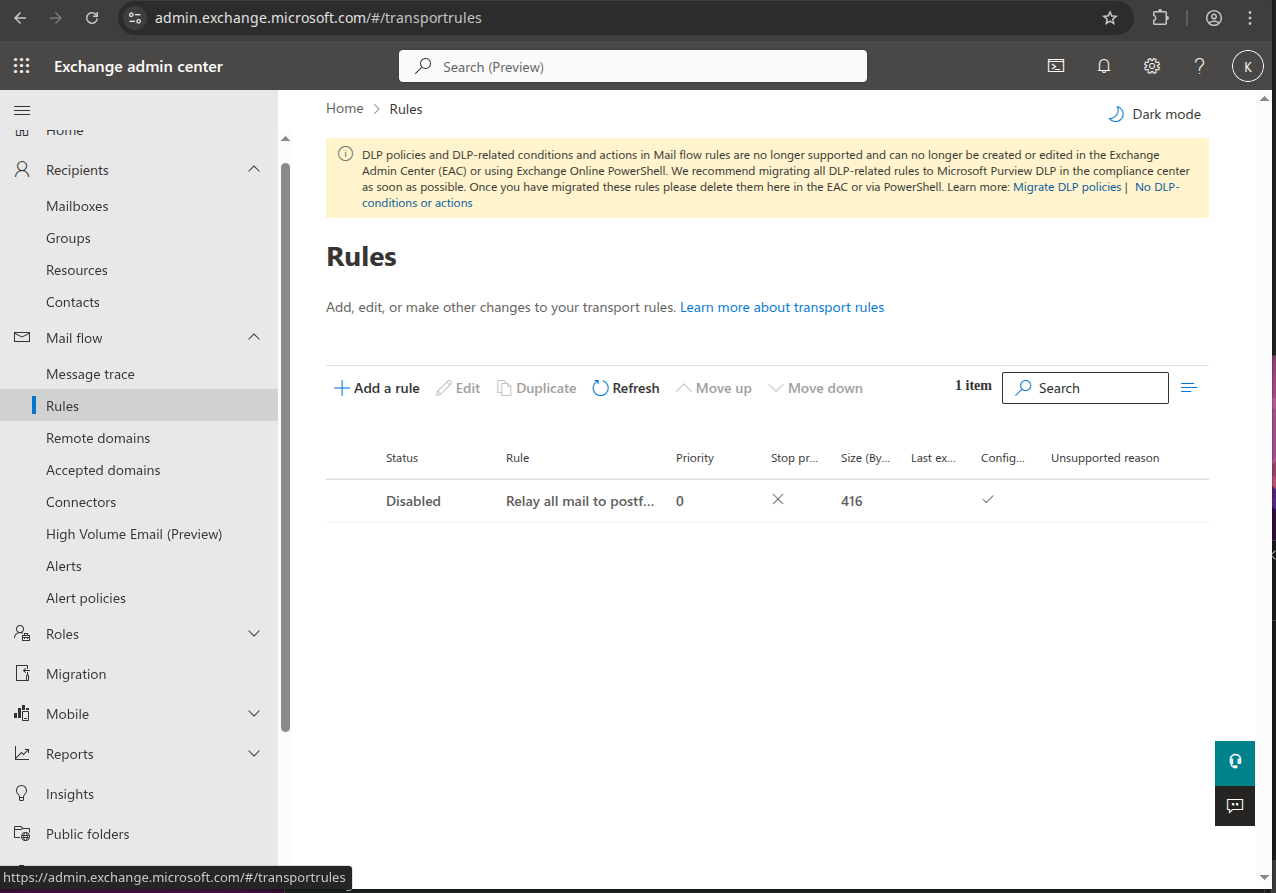

Click on the rule and set the "Enable or disable rule to "Enabled"
